Description:

Periodic frequency：50HZ
Duty cycle：900-2100us
Output signal：PWM 1.5ms±0.5ms

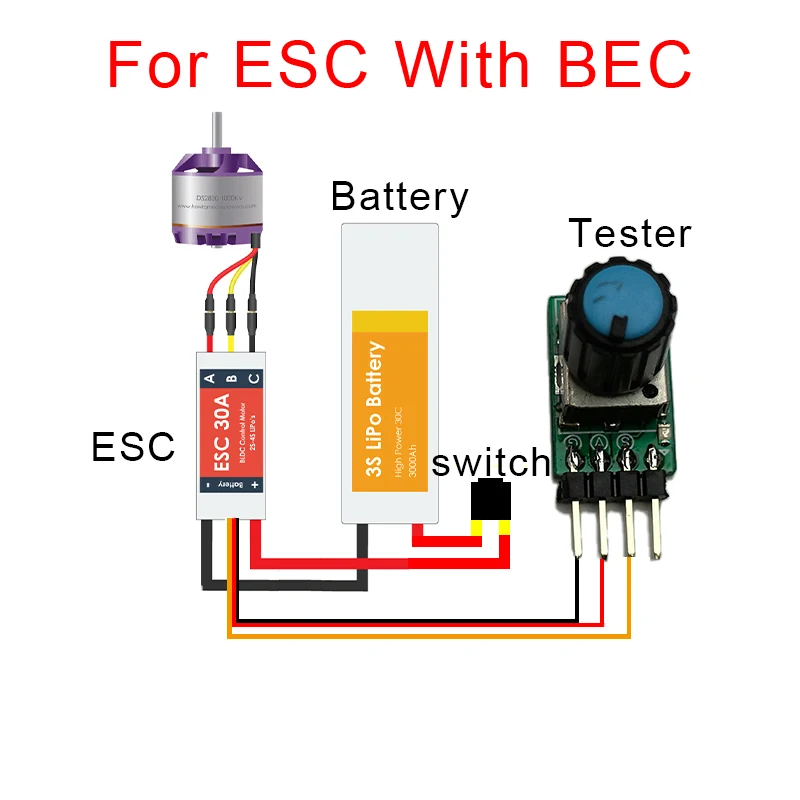

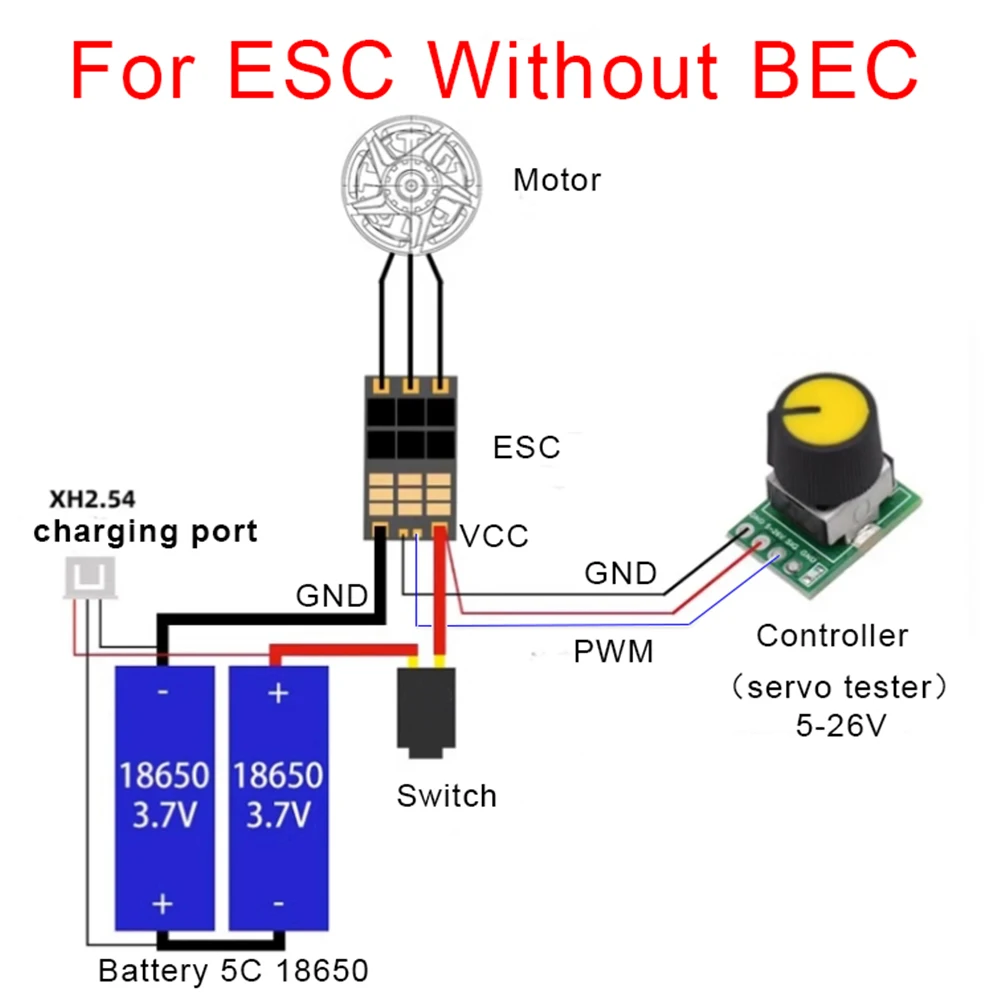

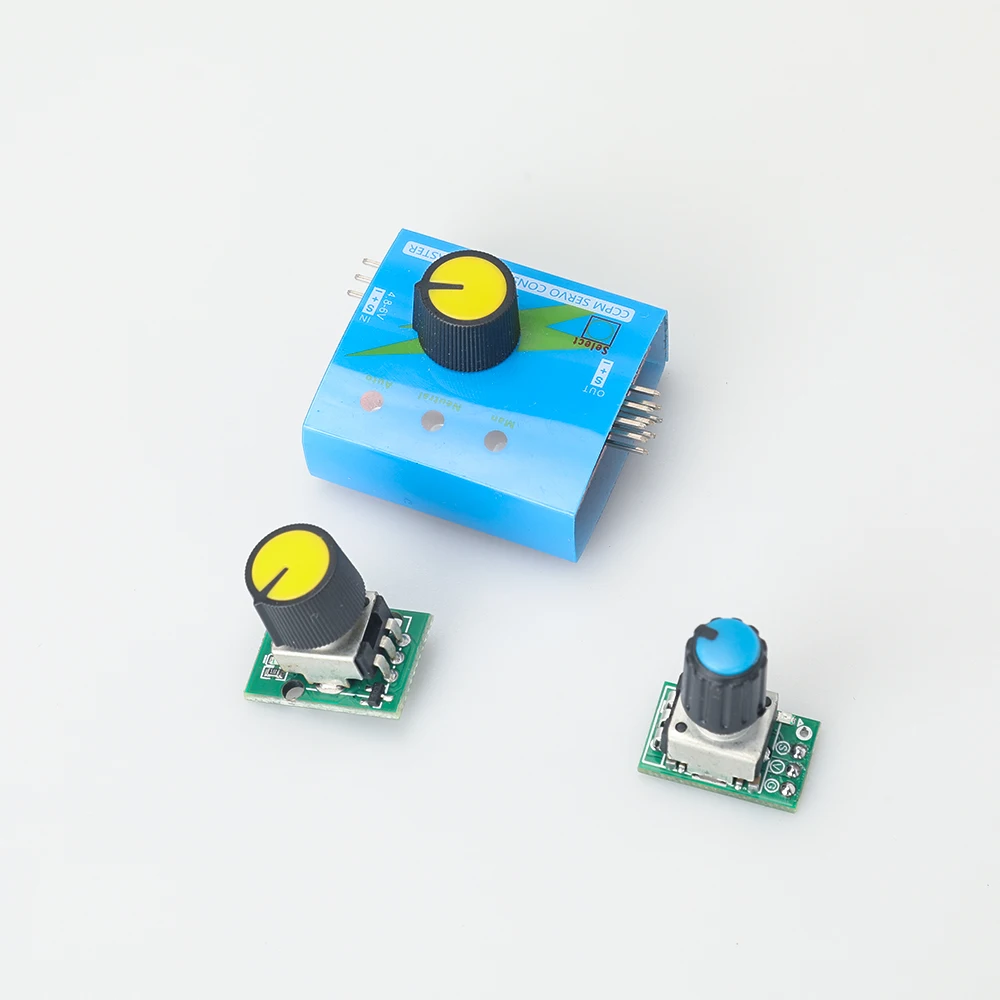

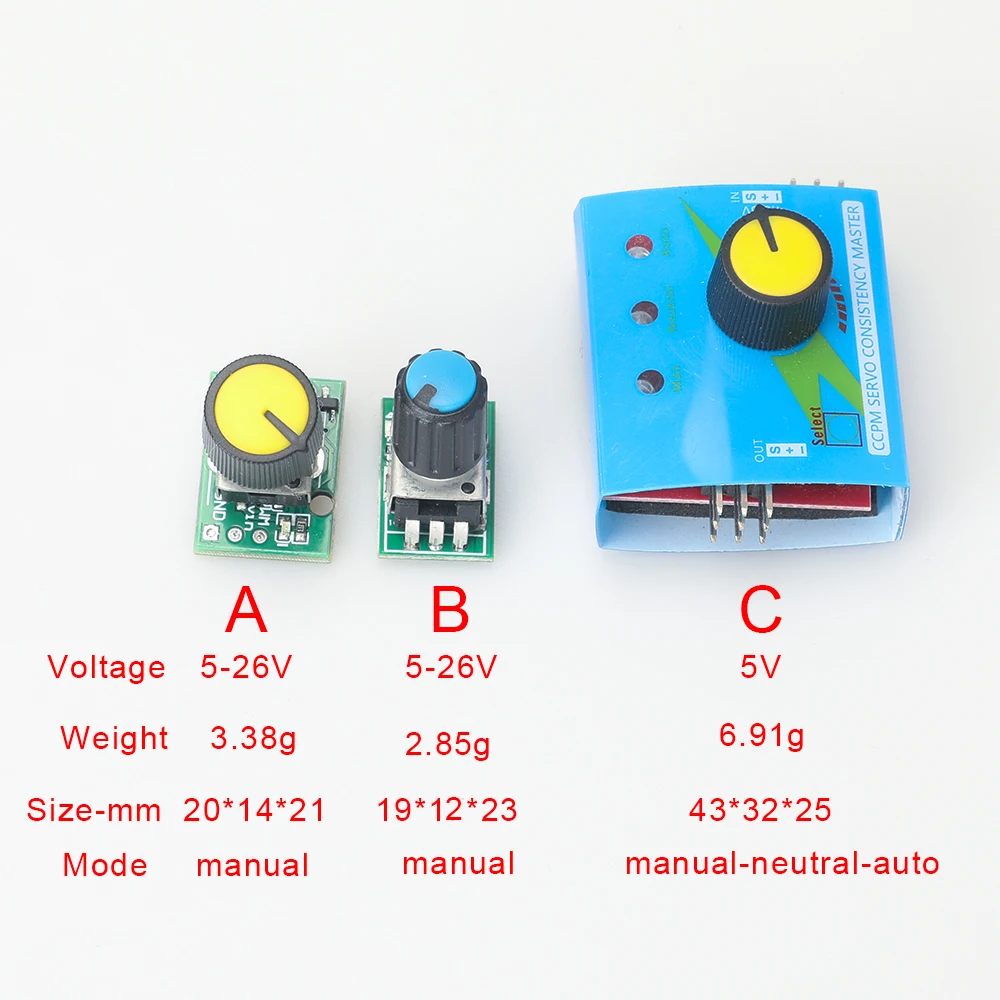

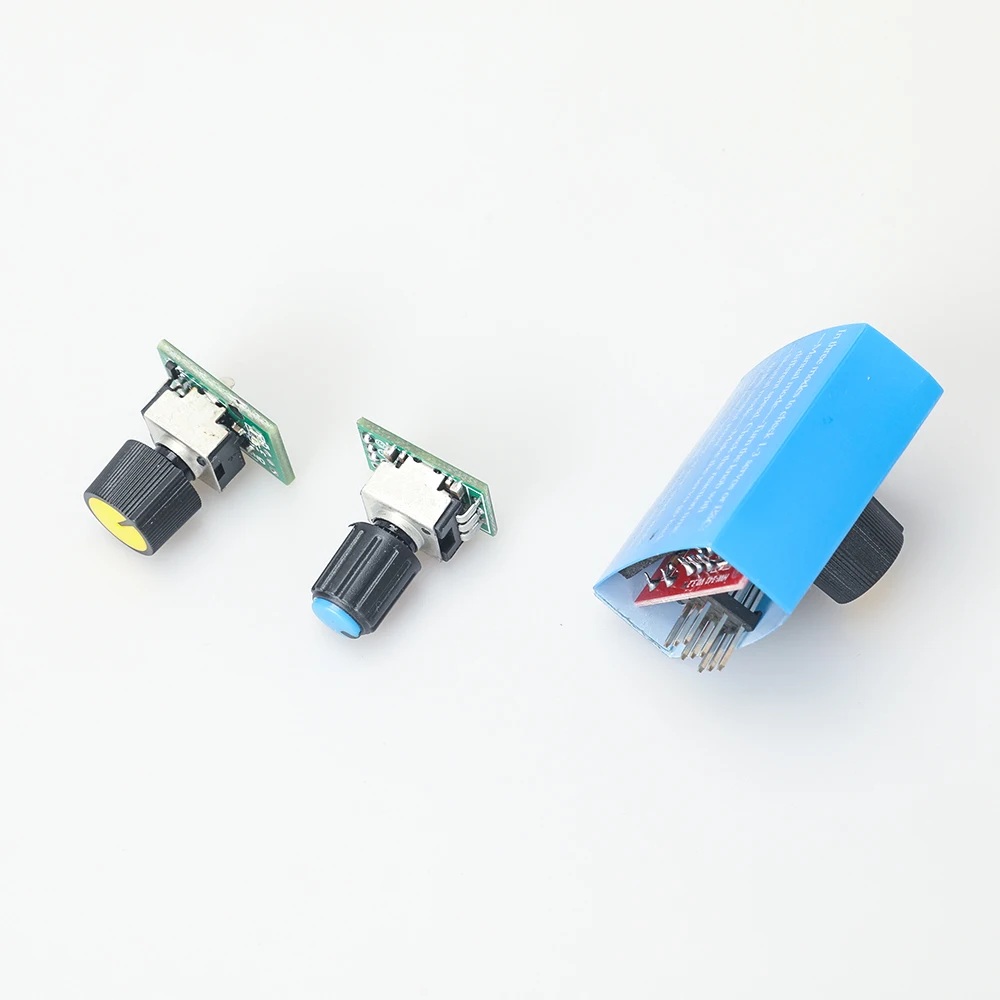

The input voltage of styles A and B is 5-26V, which can be used to test high-voltage servo without the need for separate power supply.

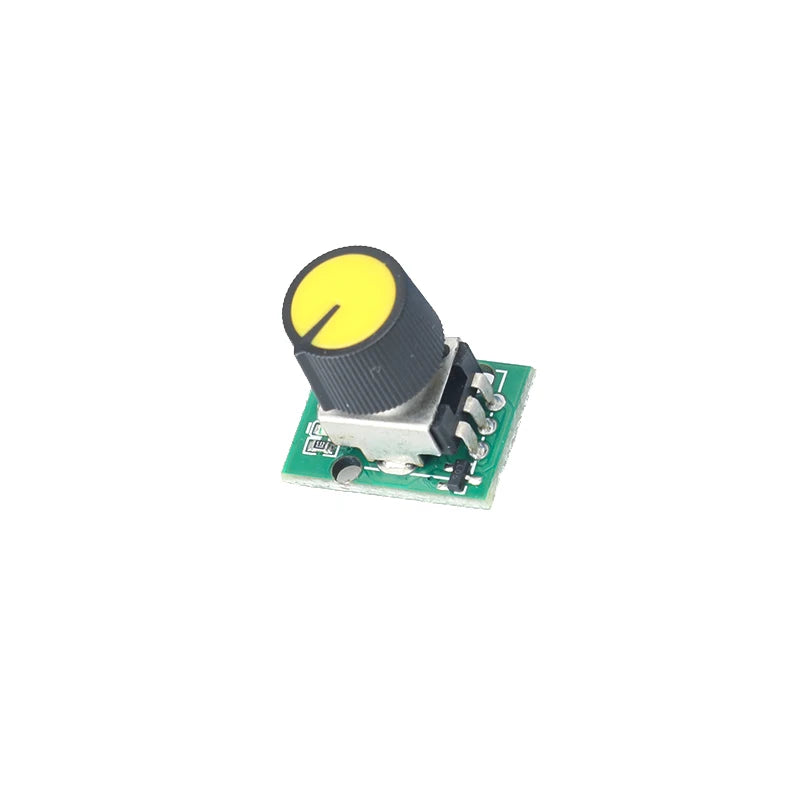

A:
Voltage consumption: DC5-26V
Size: 20*14*21mm
Weight: 3.38 g
one mode

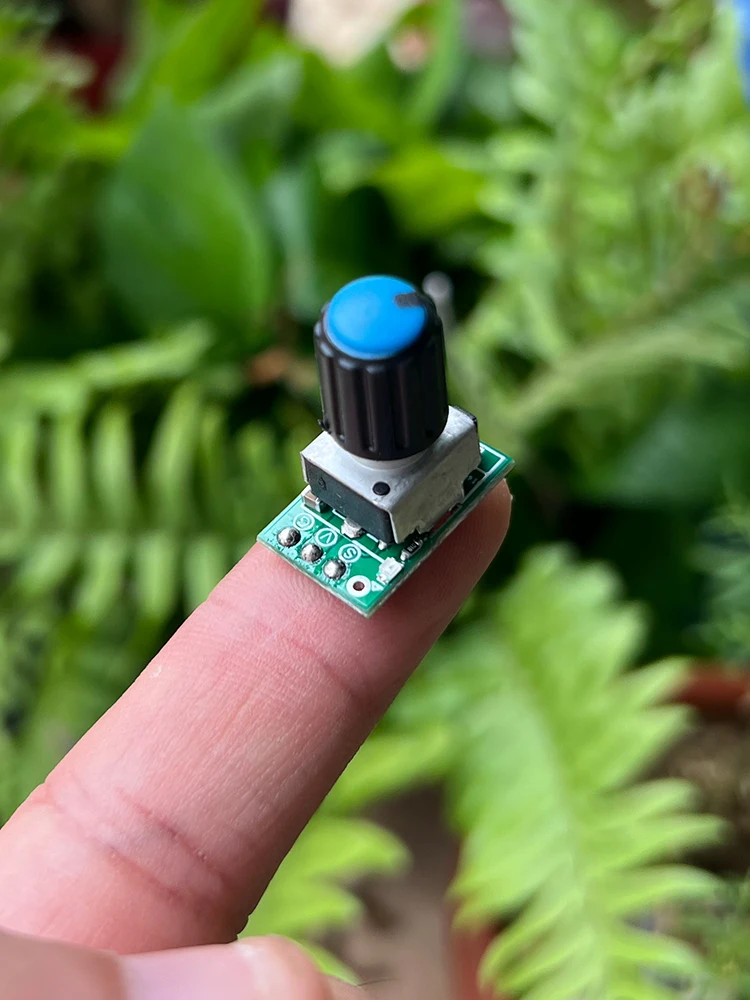

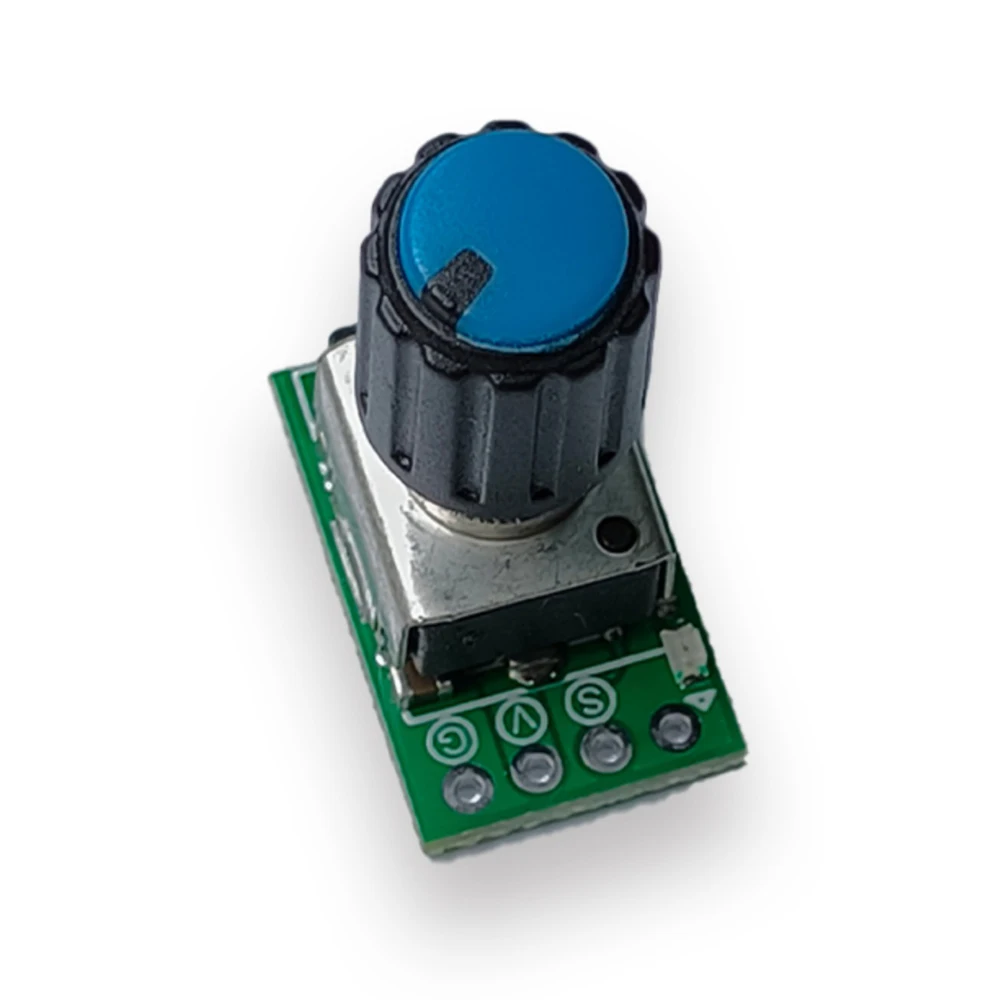

B：
Voltage consumption: DC5-26V
Size: 19*12*23mm
Weight: 2.85 g
one mode

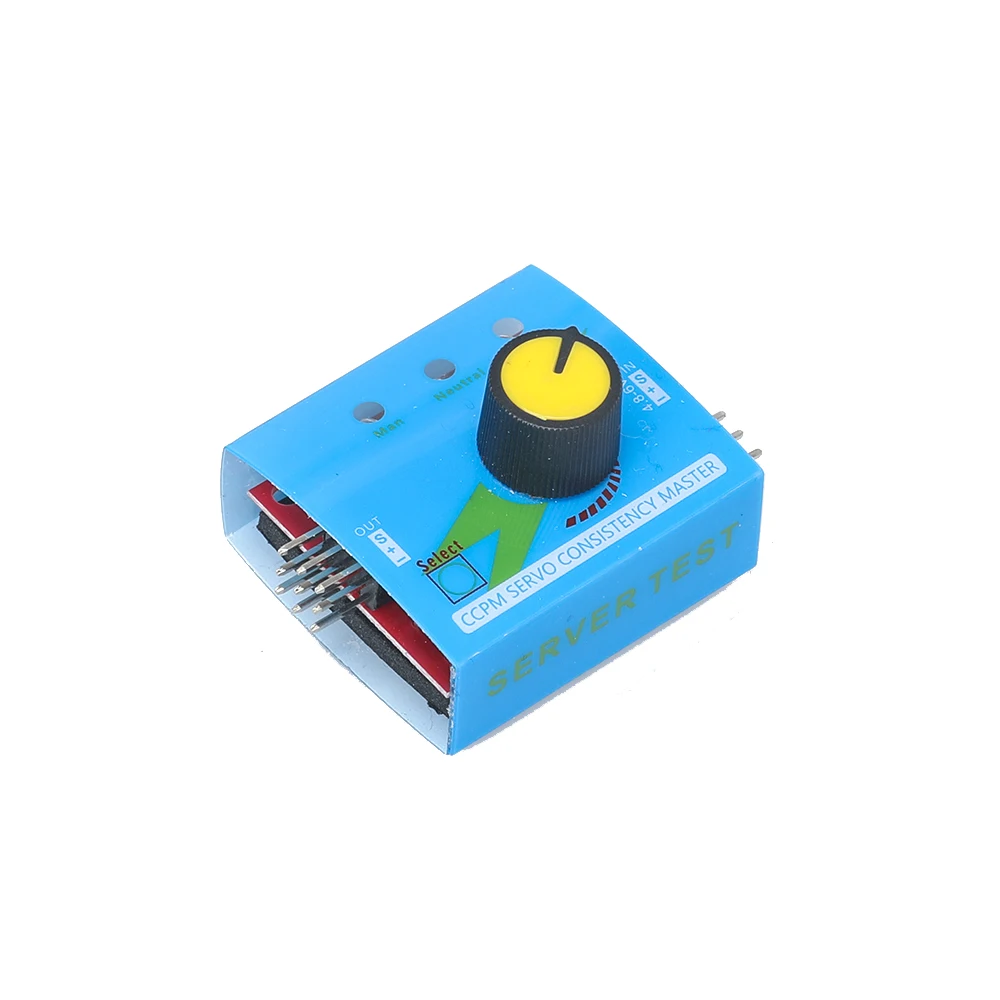

C:
Voltage consumption: DC4.8-6V
Size: 43*32*25mm
Weight: 6.91 g
There are 3 modes to check servos or ESC:
Manual mode: turn the knob with different speed, check the reaction time.
Neutral mode: make the servo go back to the neutral point.
Automatic "window wiper" mode: make the servo swing like a window wipers in the biggest angle.
It can connect 1-3 servos simultaneously and test such as 1-3 servos consistency and so on.

Package included:

1*servo tester
