Basic product parameters
Materials: high-density EPO, ABS engineering plastics
Wing span: 1600mm/63in
Captain: 1280mm/50.4in
Blade type: combination 12x 7 three blade propeller (one set for forward and one set for reverse)
Motor: 3748-450KV brushless external rotating motor x2
Electric adjustment: 50A/BEC 7Ax 1, 50A x1 (excluding BEC)
Steering gear: digital, 9g plastic teeth x4, 9g mixed teeth x7, 17g metal teeth x4

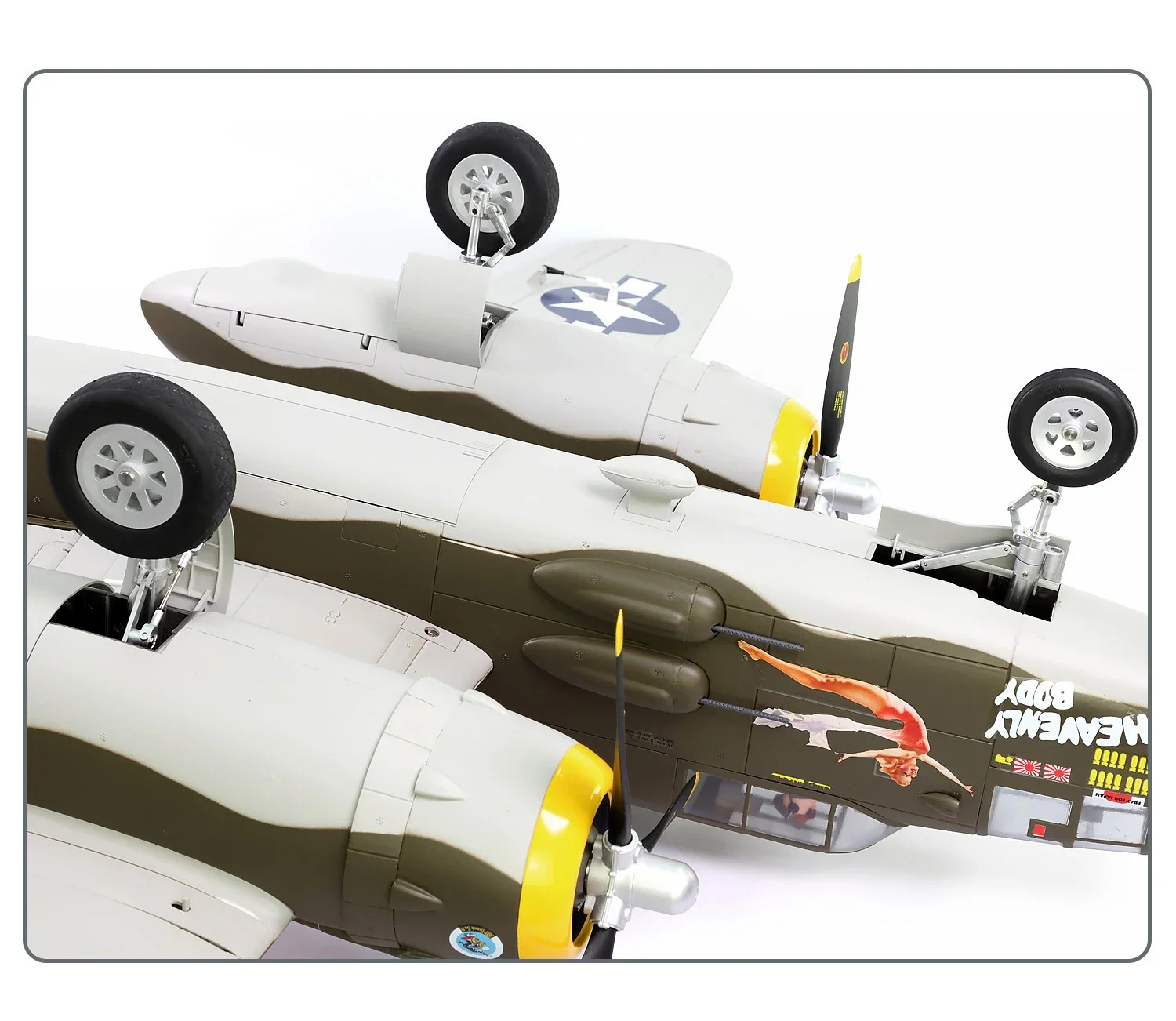

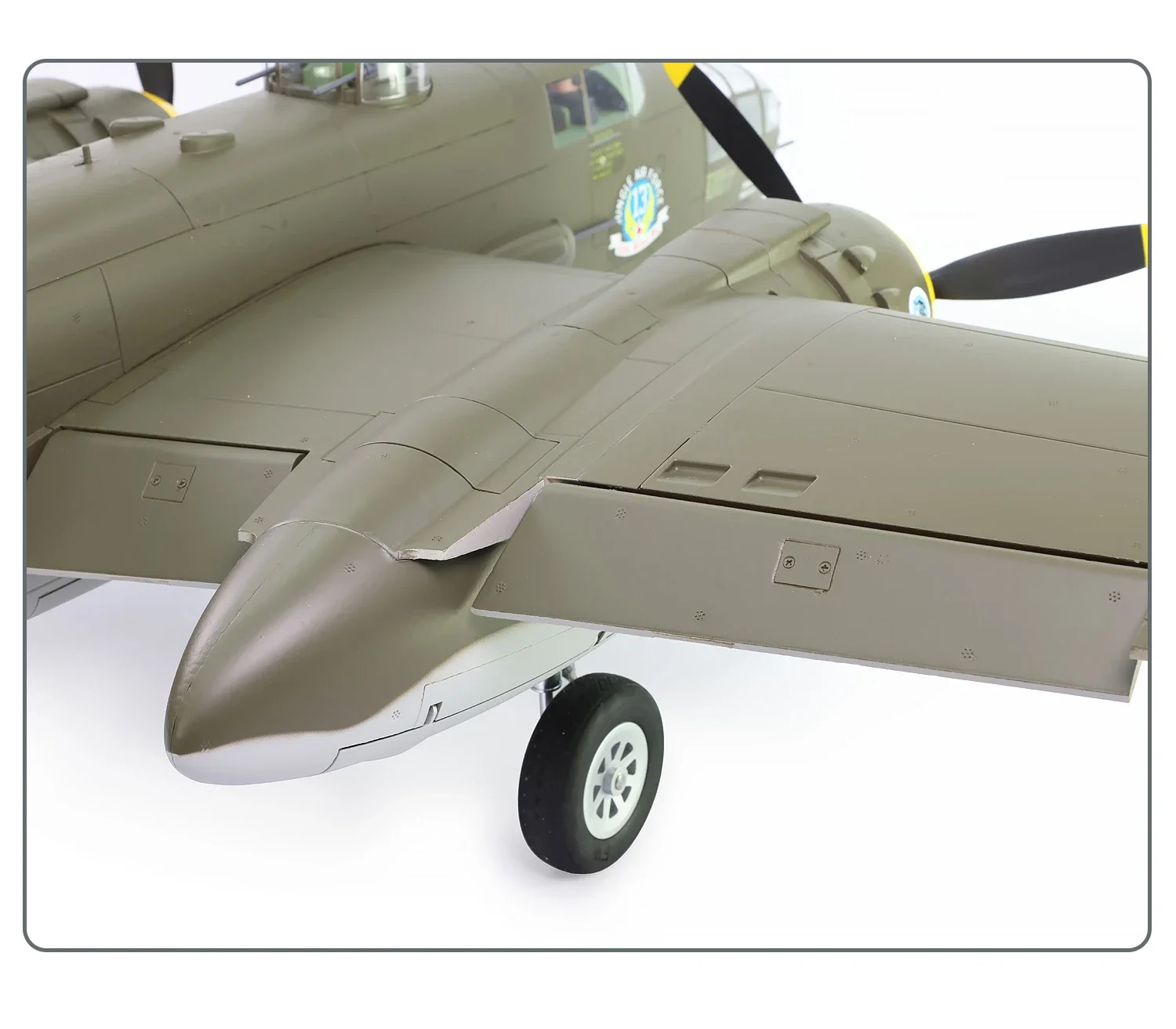

Landing gear system: CNC processed aluminum alloy shock absorber landing gear, paired with plastic decorative parts
Door system: front and rear complete doors, 8 movable parts
LED light system: wingtip navigation light x2, landing light x2
Other electronic devices: B-25 hub control board, gyroscope (additional options)
Other functions: Bomb chute
Channel Introduction: Ailerons | Flaps | Elevations | Throttle 1 Direction 1 Bomb Bay Control | Landing Gear
Special Notice:
1. The product will continue to be updated over time. If the specifications and parameters shown in the manual and color box are different from those shown here, the actual goods shall prevail!
2. It only represents the specific content contained in each version and is a general term introduction. It does not mean that the current product contains all listed versions.

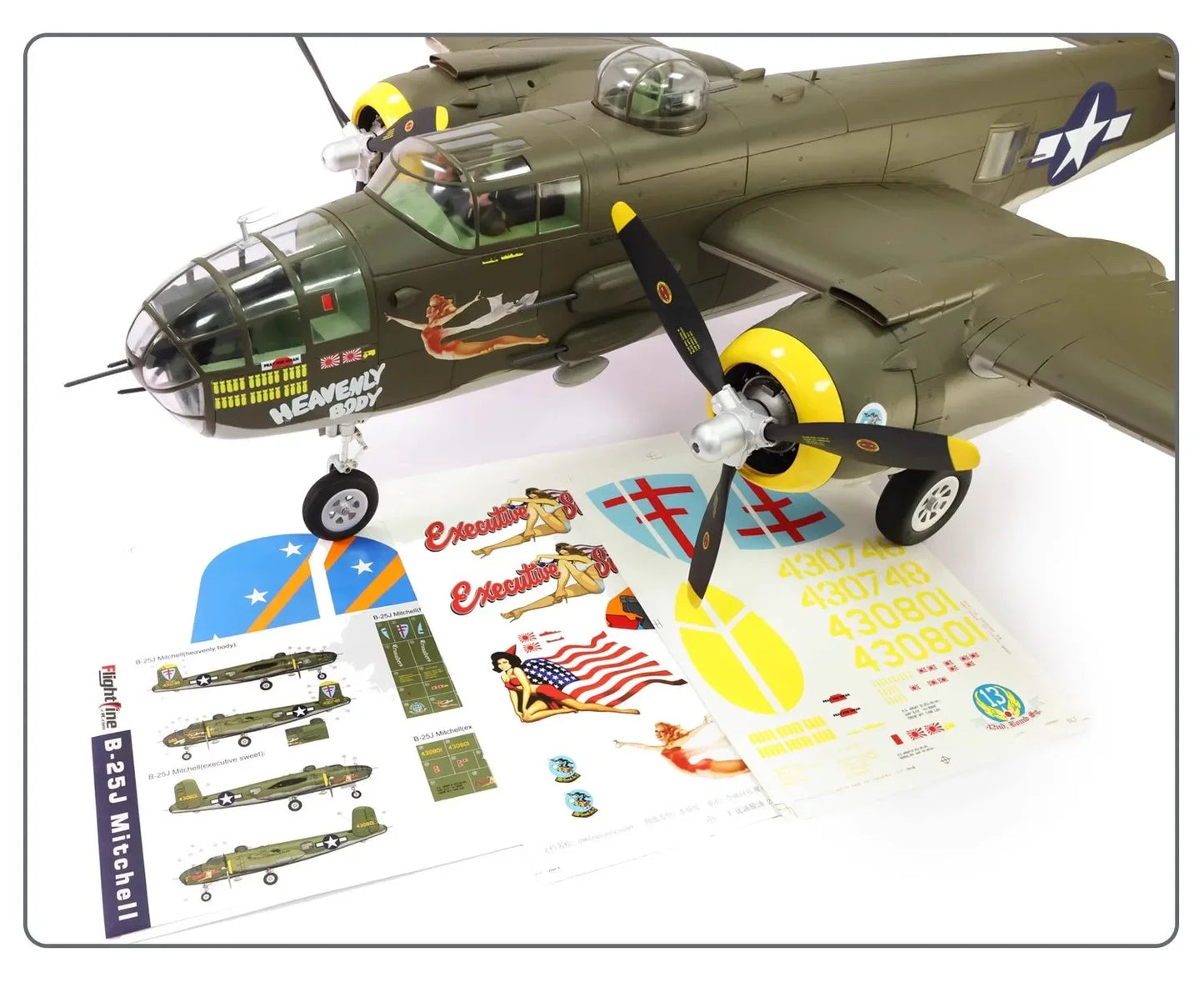

The product has been painted before leaving the factory, and the machine emblem is pre attached with three different sets of decal patterns for selection

Remarks:

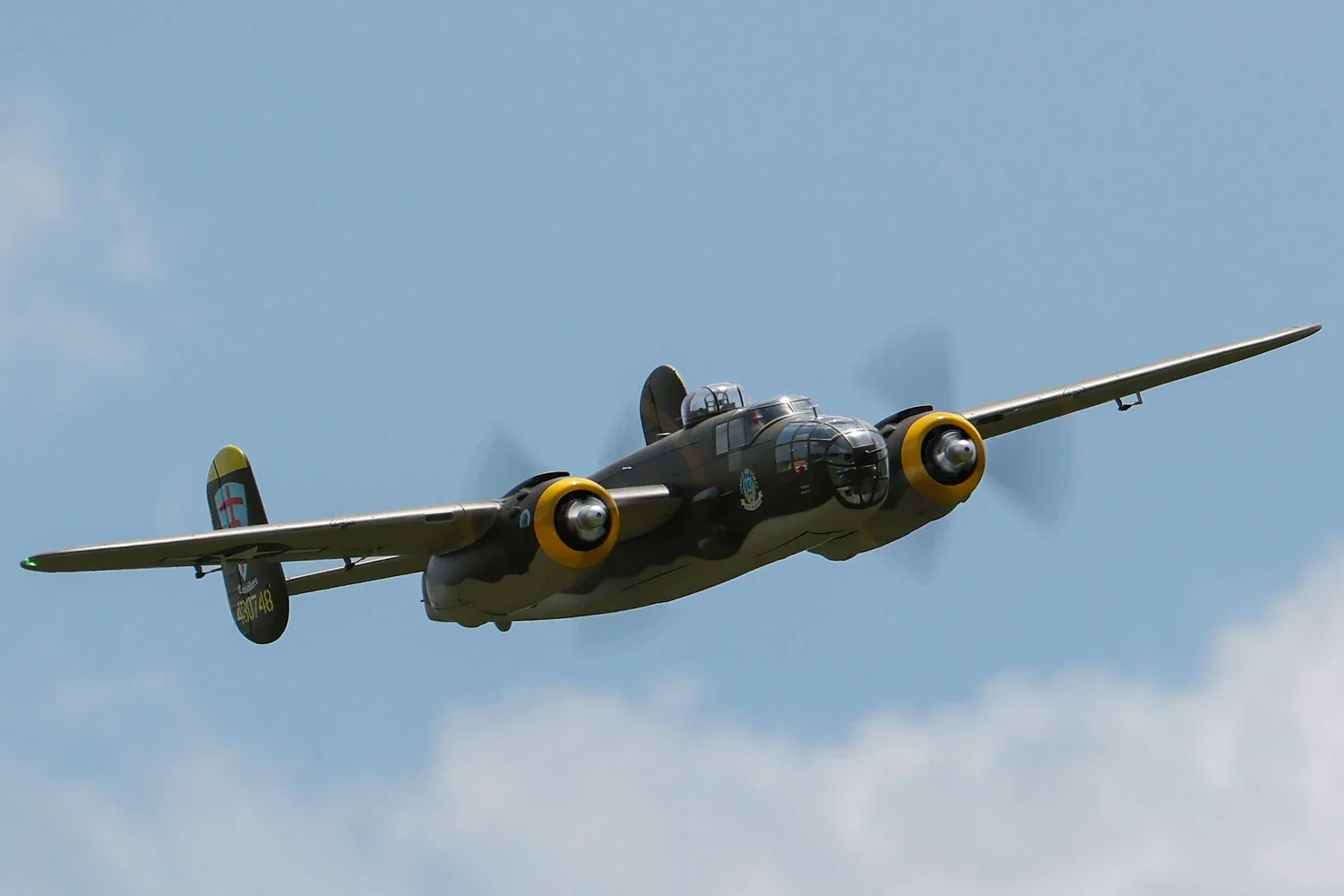

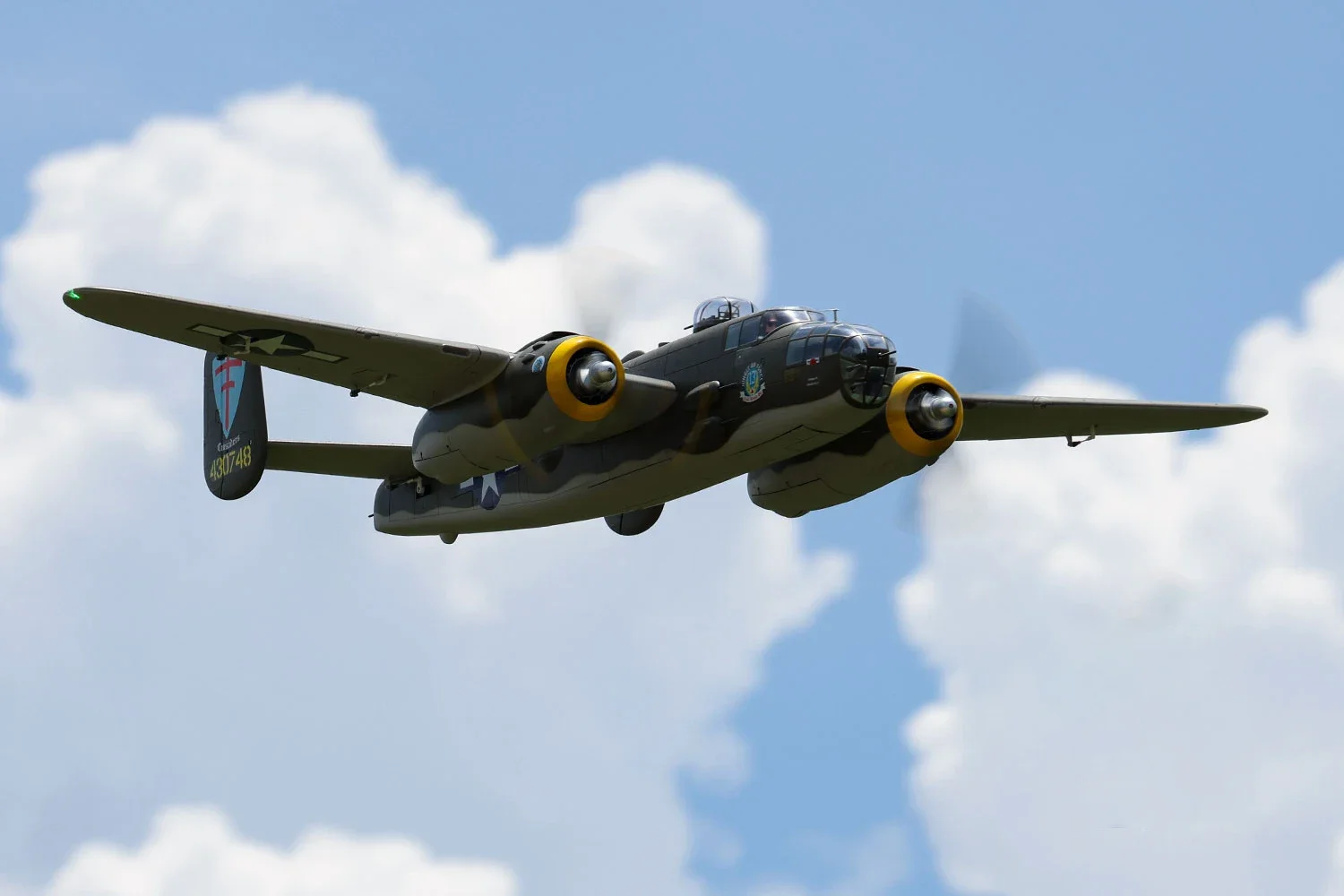

1. The aircraft image here is for reference only. There are no stickers at the beginning and end of the factory. You need to choose a painting plan based on your own needs and paste it and improve it yourself
2. The stickers included in the packaging are water stickers. Please contact customer service for assistance in using them

Remarks:

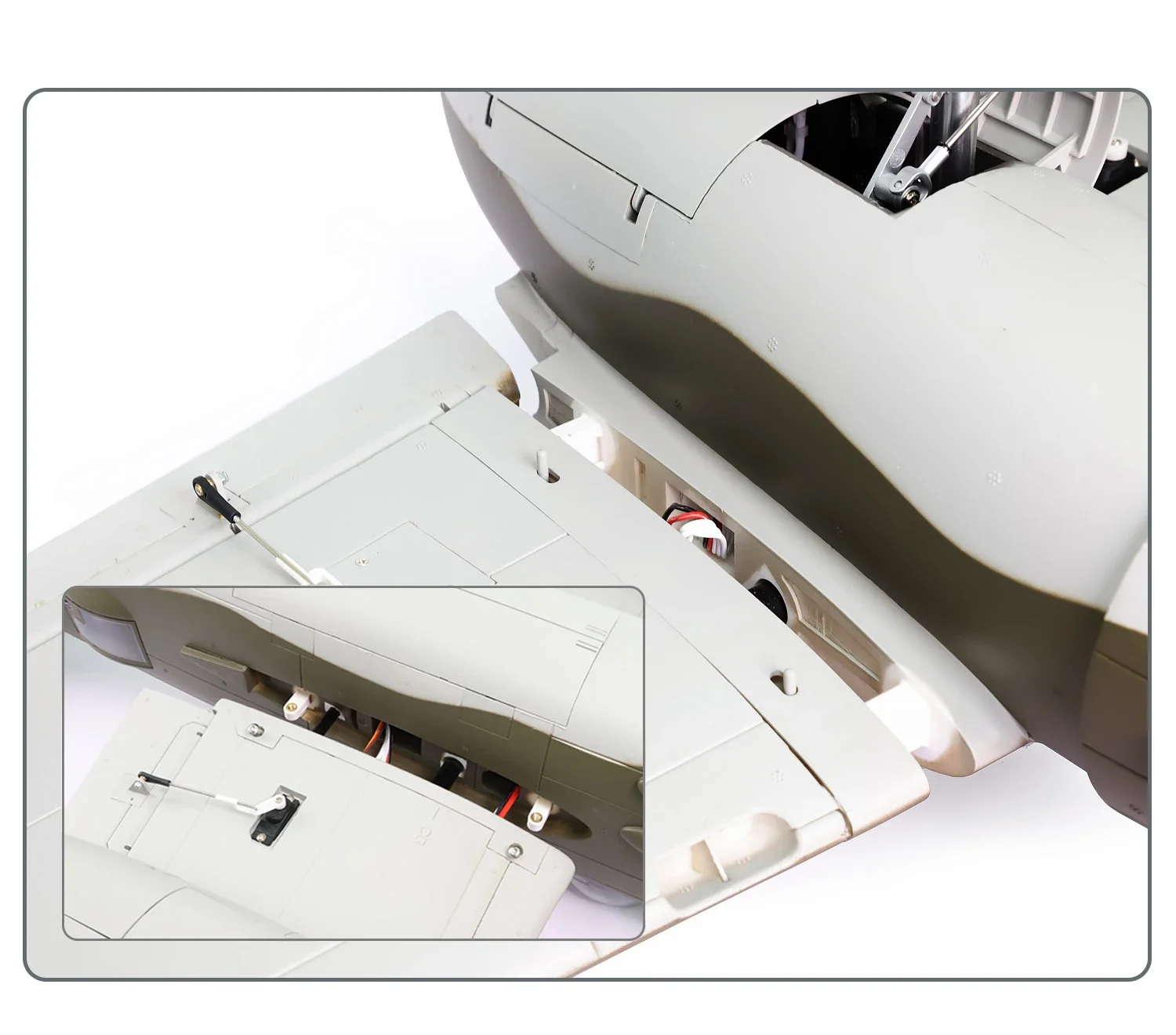

1. Three section main wing design, with the middle section main wing fixed with screws. The outer main wing adopts a "QUCK" fast passenger portable screw free bolt structure. When carrying or transporting, the outer main wing can be removed to obtain a smaller transportation volume.
2. If storage is required, the middle main wing can be removed. All components of the product can be disassembled and restored to the factory packaging state

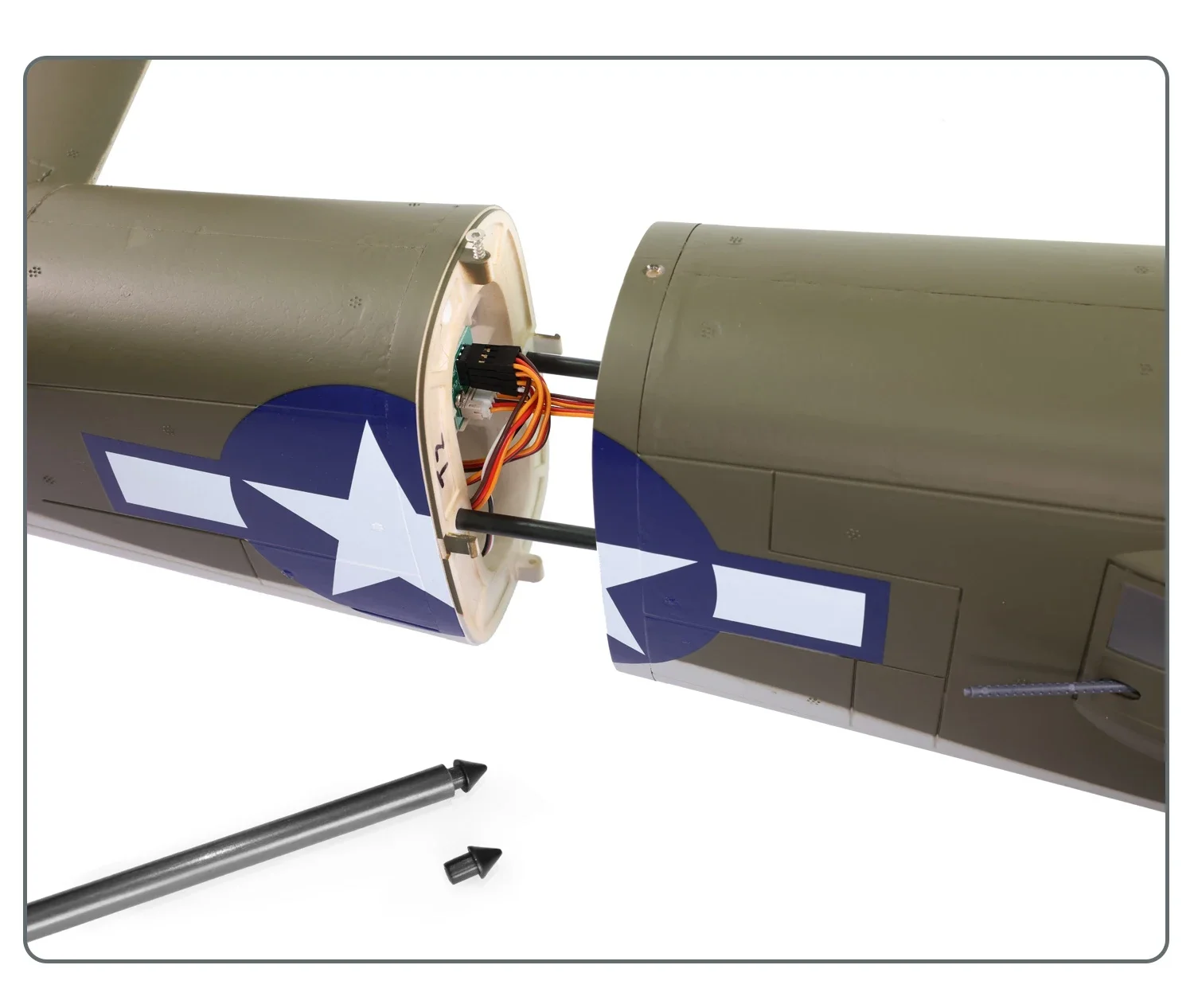

The segmented design of the front and rear fuselage saves packaging volume, and the intelligent design of environmentally friendly adapter plates, direct connection cables, carbon fiber tube guide cones, and adhesive free fuselage fixed structural components brings convenience of installation, ease of use, and safety of use

Remarks:
1. Due to batch fluctuations in the inner diameter size of carbon fiber tubes, if there is any looseness when inserting the carbon fiber tube guide cone, it is recommended to
Glue reinforcement to prevent falling and affecting secondary use. (Guide cone parts, random black and white colors)
If you need to store it, you can immediately separate the body and disassemble it to restore it to the factory packaging state!

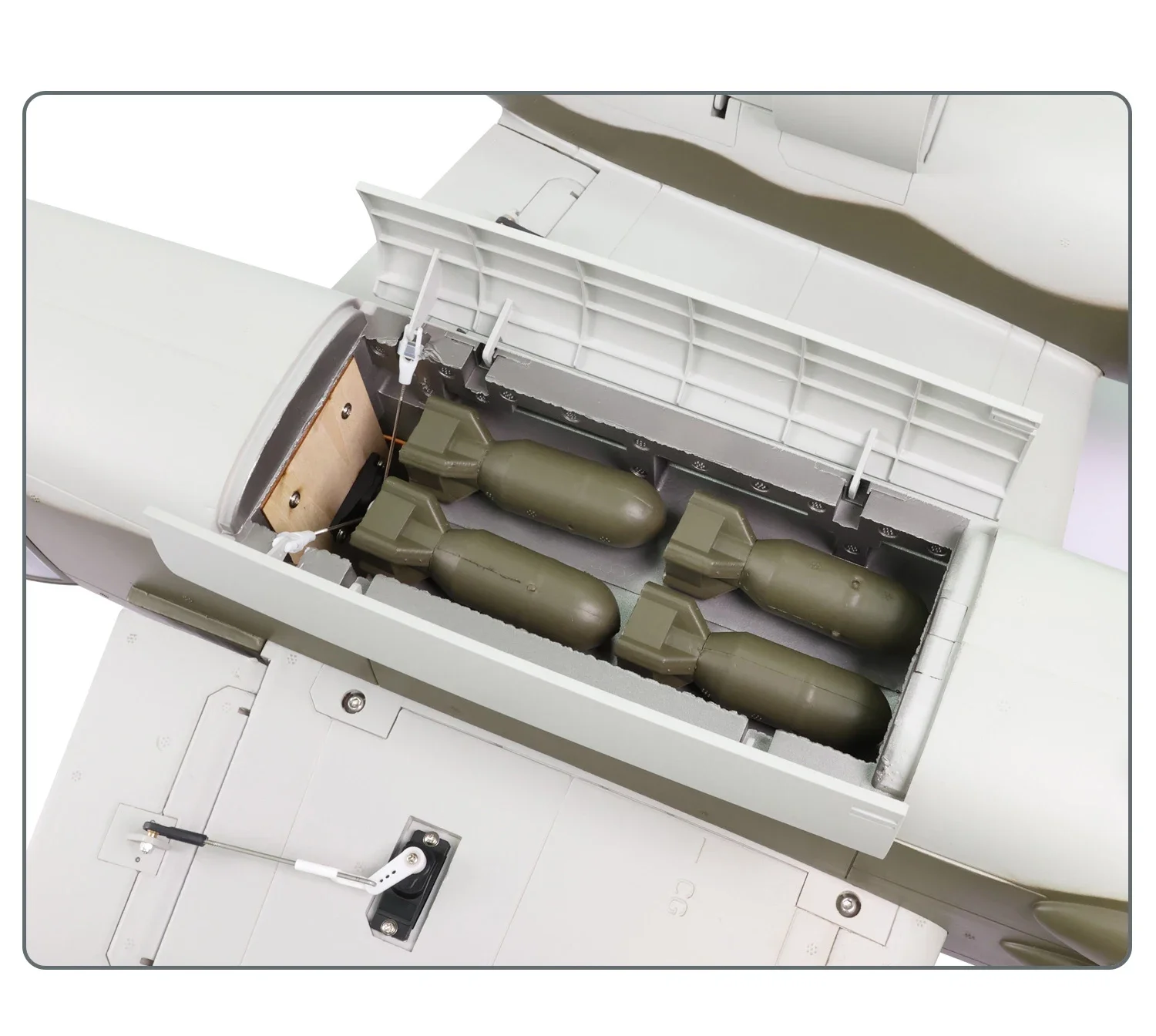

The bomb chamber containing the Four Ying Bomb model is designed to provide us with a more creative DY platform by setting switch channels to control throwing bricks and attracting jade

There is a navigation light at the tip of the left and right main wings respectively
There is a landing light in the middle of the leading edge of the left and right main wings, respectively
The landing lights turn on after the landing gear is lowered

6S 3748-450KV brushless motor
50A dual electric regulator, 5V/7A BEC
Ground test with full oil, continuous current less than 35A

Remarks:
When using a combination of dual electrical regulators, one of the regulators does not provide power support. So when using, you do not need to perform additional processing on the electrical adjustment connection line. The electrical regulator containing the power function has its label displaying relevant parameters

Remarks:
For reference, when installing a 780g battery in the factory PNP configuration without additional equipment, the battery should be placed towards the front. At this point, the aircraft's center of gravity overlaps with the identification line, meeting the center of gravity requirements. When in use, please move the battery back according to its weight or increase the counterweight to obtain the correct center of gravity.
