Fast Charge Decoy Trigger Module Type-C PD QC AFC Output Charge Board Module DC 5V 9V 12V 15V 20V For Charger WIFI Router Camera
Fast Charge Decoy Trigger Module Type-C PD QC AFC Output Charge Board Module DC 5V 9V 12V 15V 20V For Charger WIFI Router Camera
Regular price
$4.60 USD
Regular price
Sale price
$4.60 USD
Unit price
per
Couldn't load pickup availability
SPECIFICATIONS
Origin: Mainland China
DIY Supplies: ELECTRICAL
Type: Fast Charge Decoy Trigger Module
Certification: none
Model Number: Type-C PD QC AFC Output Charge Board
Size: Fast Charge Decoy Trigger Module
Style: Fast Charge Decoy Trigger Module For Charger WIFI Router Speaker Camer
Output Type: Output Charge Board
Fast Charge Decoy Trigger Module Type-C PD QC AFC Output Charge Board Module DC 5V 9V 12V 15V 20V For Charger WIFI Router Camera
Description:
1: Widely used
2: Easy to use
3: Multiple specifications available
4: Stable performance
5: Support 5V/9V/12V/15V/20V bait output (specific range depends on your power supply)
Parameters:

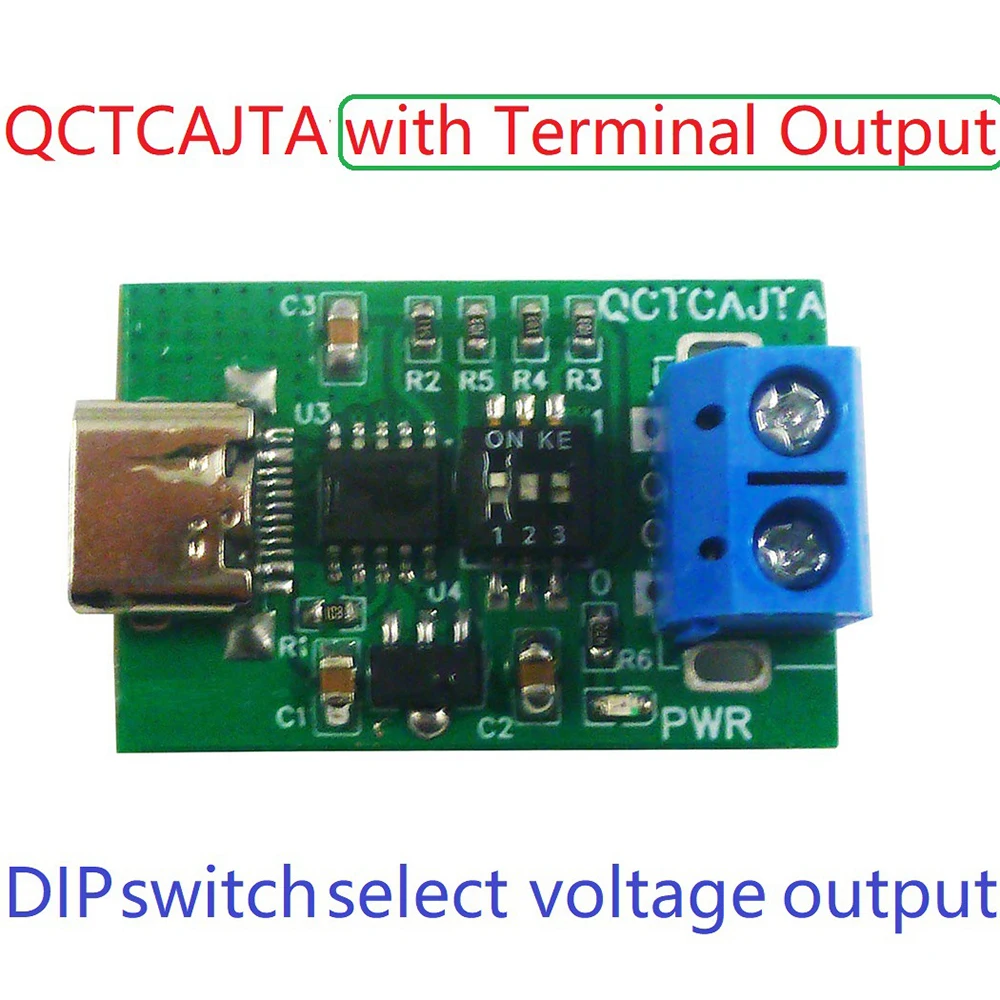

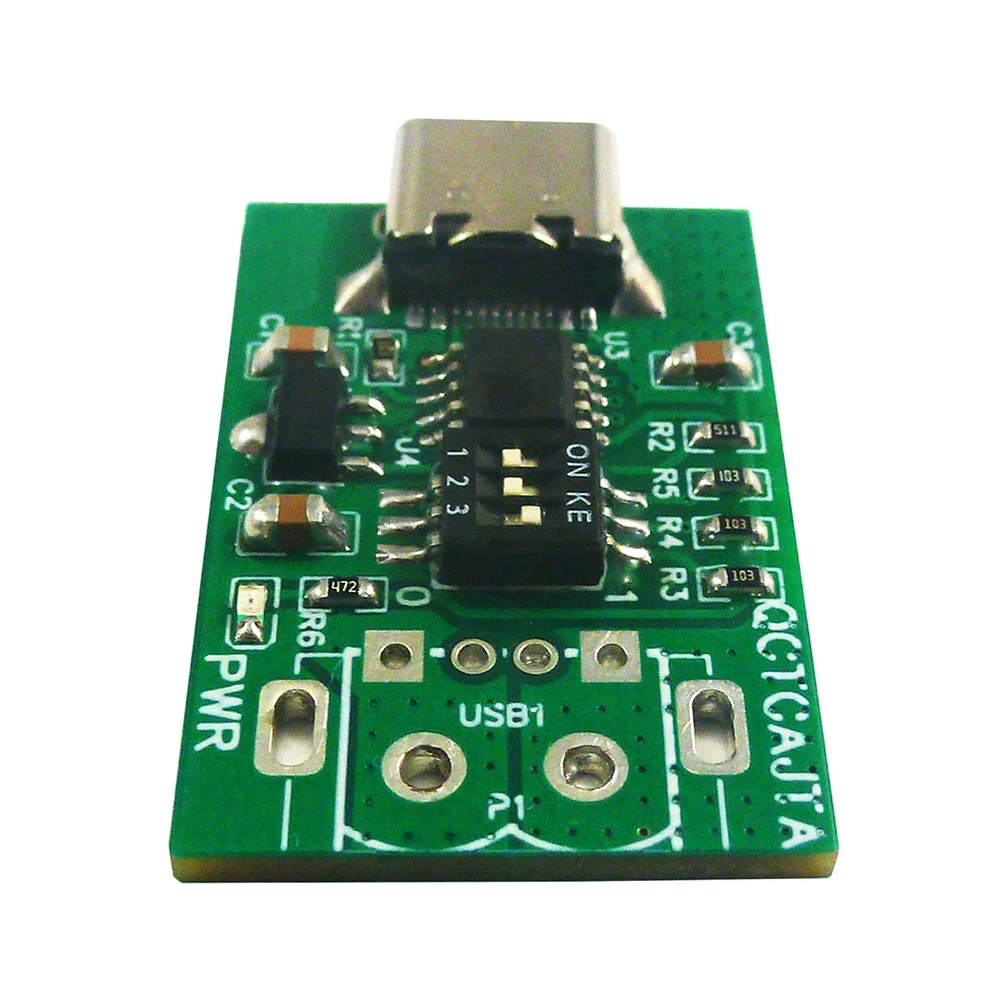

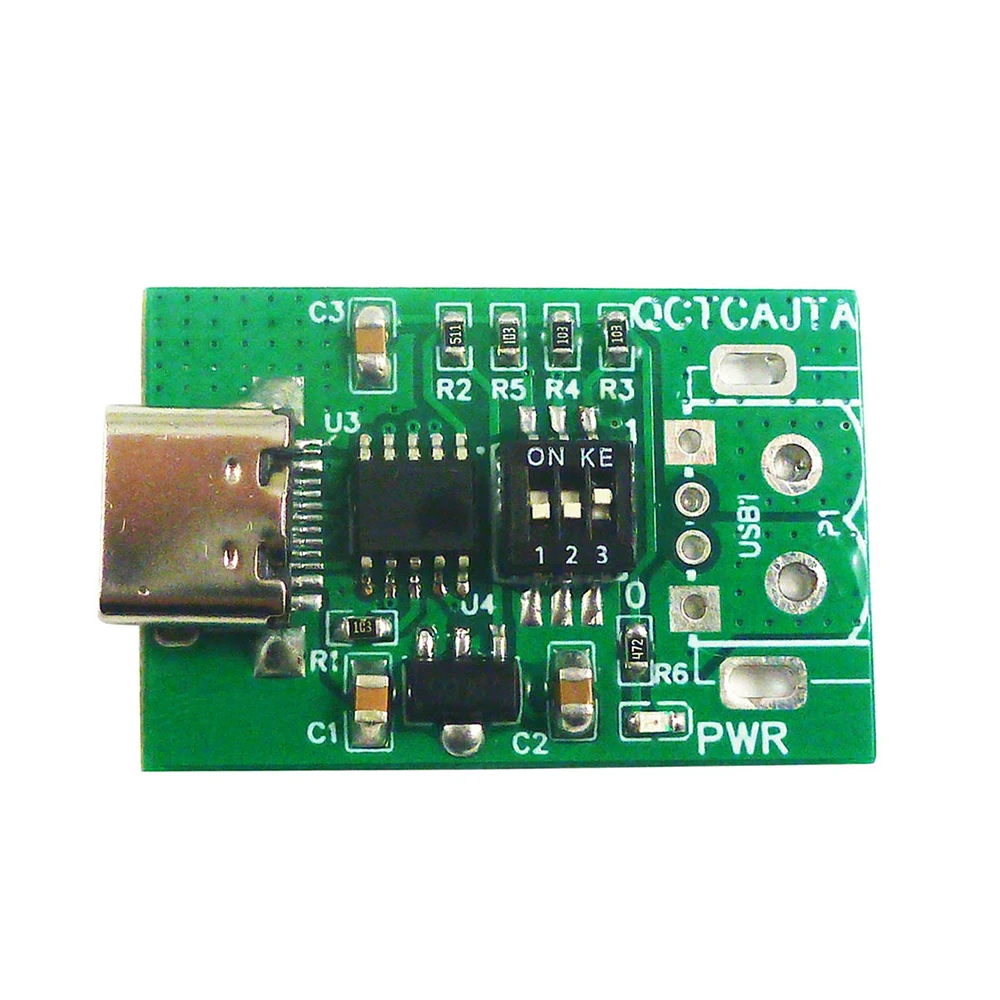

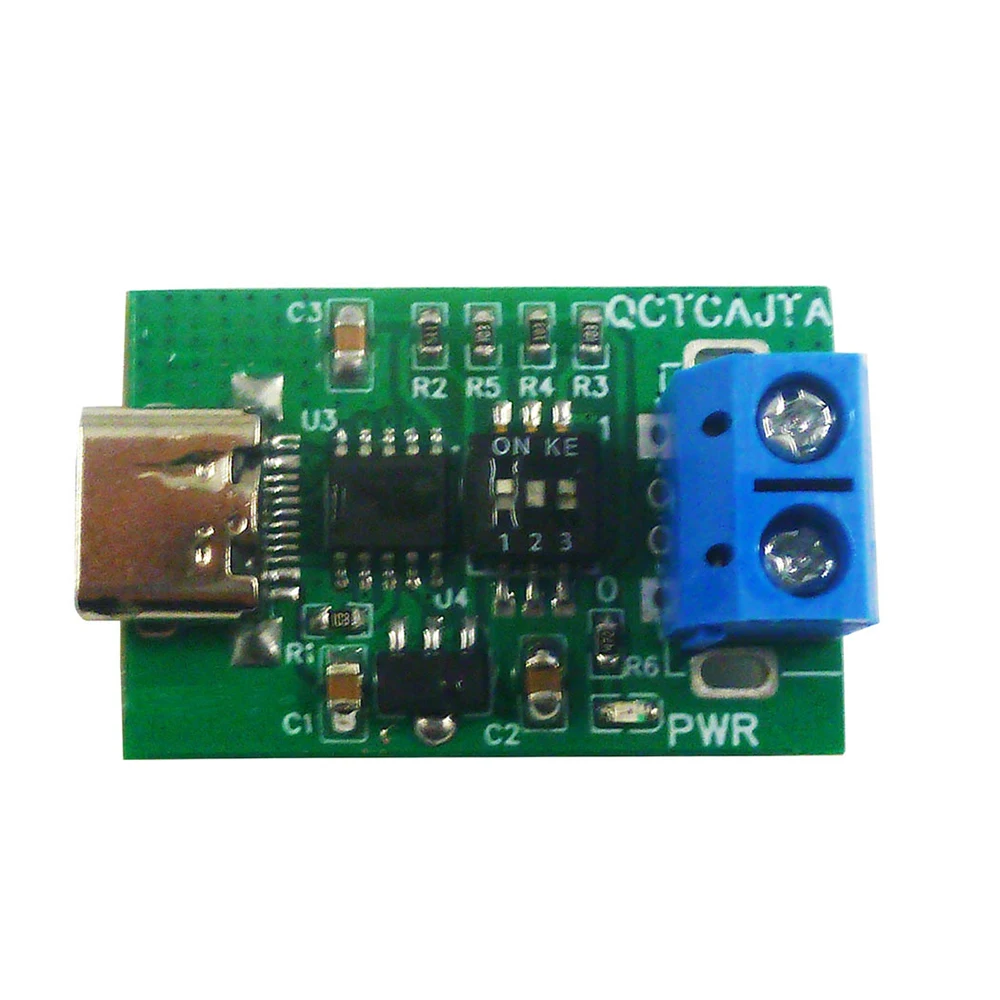

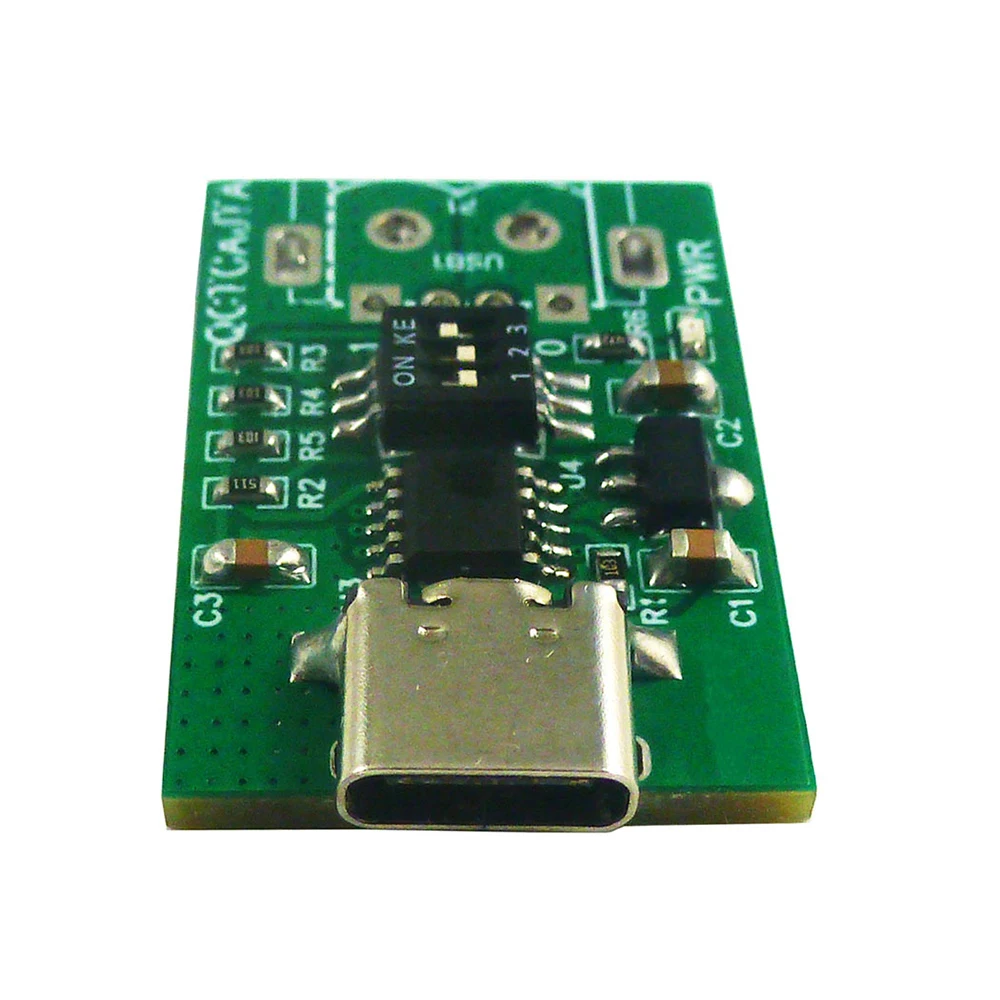

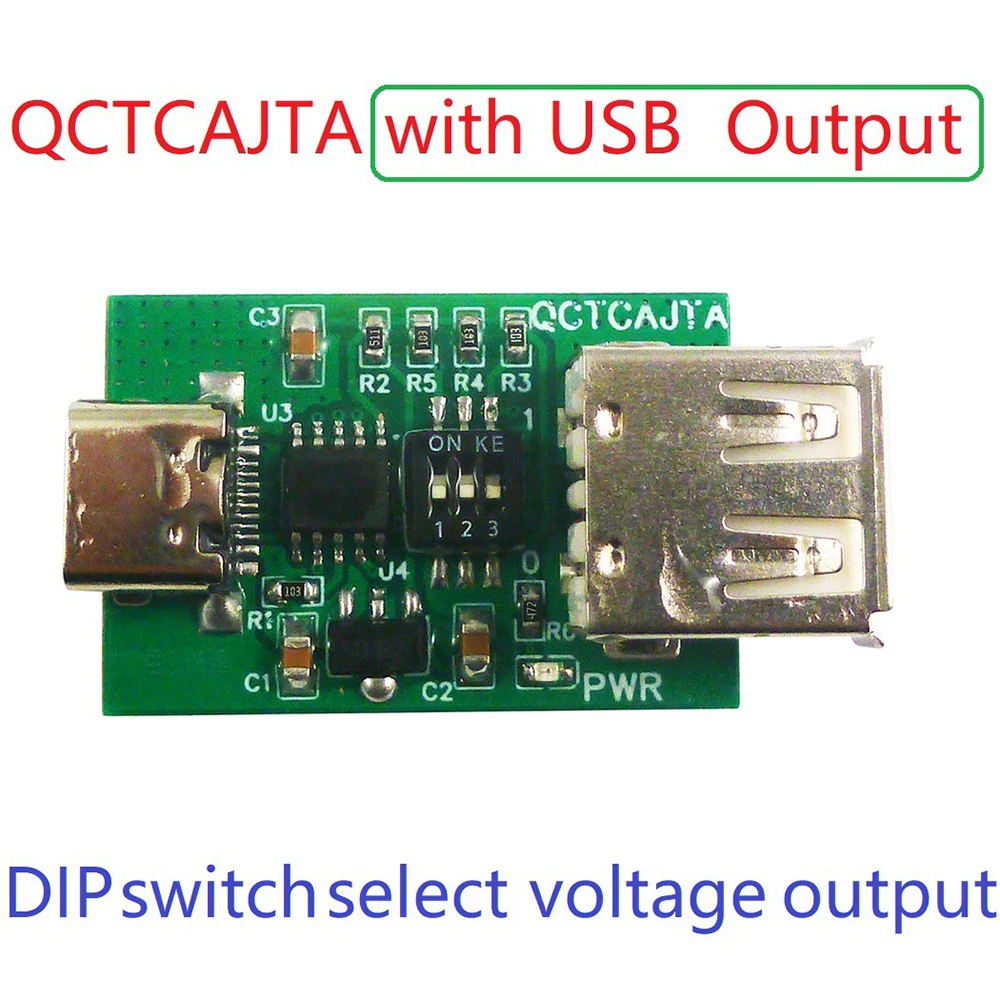

Dial switch selects voltage output module (type A):
1. Fast charging support protocol: PD2.0/PD3.0.QC2.0/QC3.0.AFC.FCP
2. Module support voltage: 5V/9V/12V/15V/20V (charger support required)

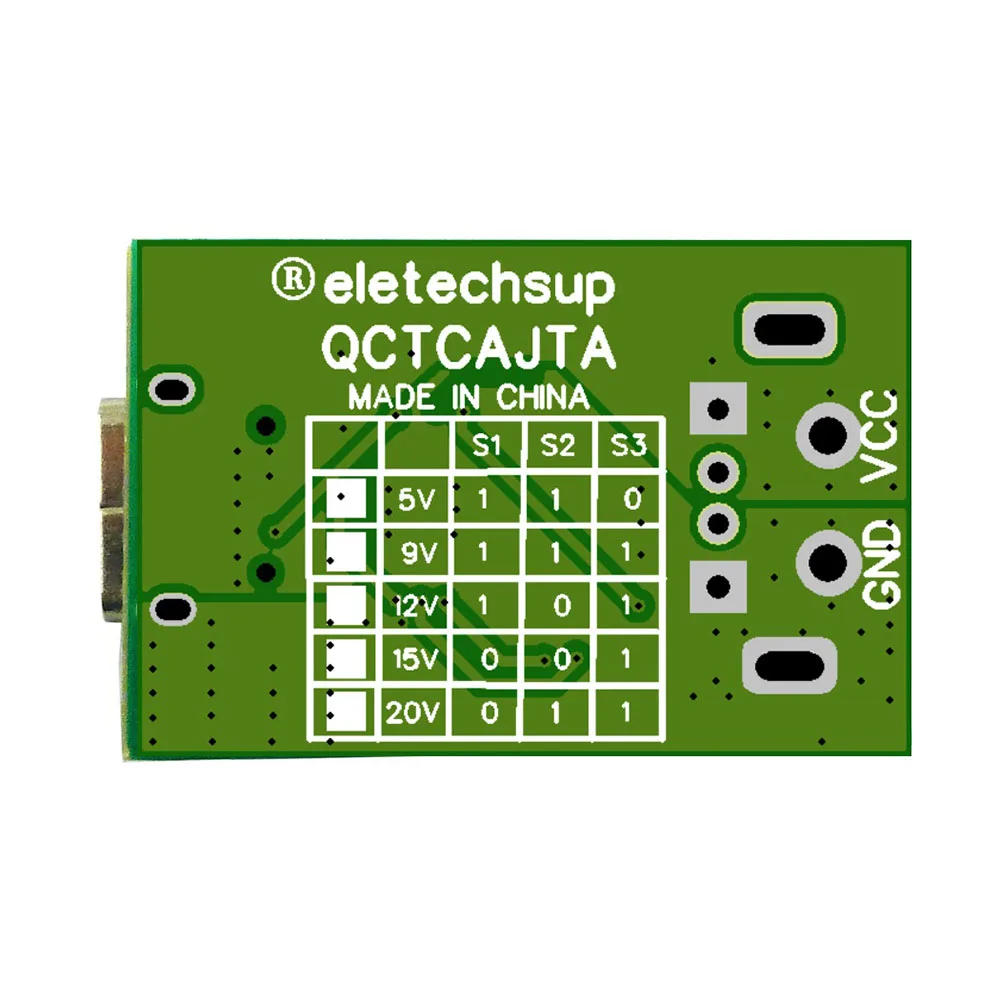

3. Voltage regulation mode: according to the table behind the board, adjust the dial switch to control the voltage output
Attention;
1 After adjusting the dial switch, because there is no voltage indication, it is recommended to use a multimeter to measure the voltage before connecting the application circuit
2 If the dial switch is not adjusted according to the table, the module will output the voltage supported by a module at will
3 Whether these voltages can be output (5V 9V 12V 15V 20V) depends on your charger.
Size: 30mm X 20mm X 10mm
Weight: 3g (standard), 4.6g (with terminal), 4.4g (with USB)

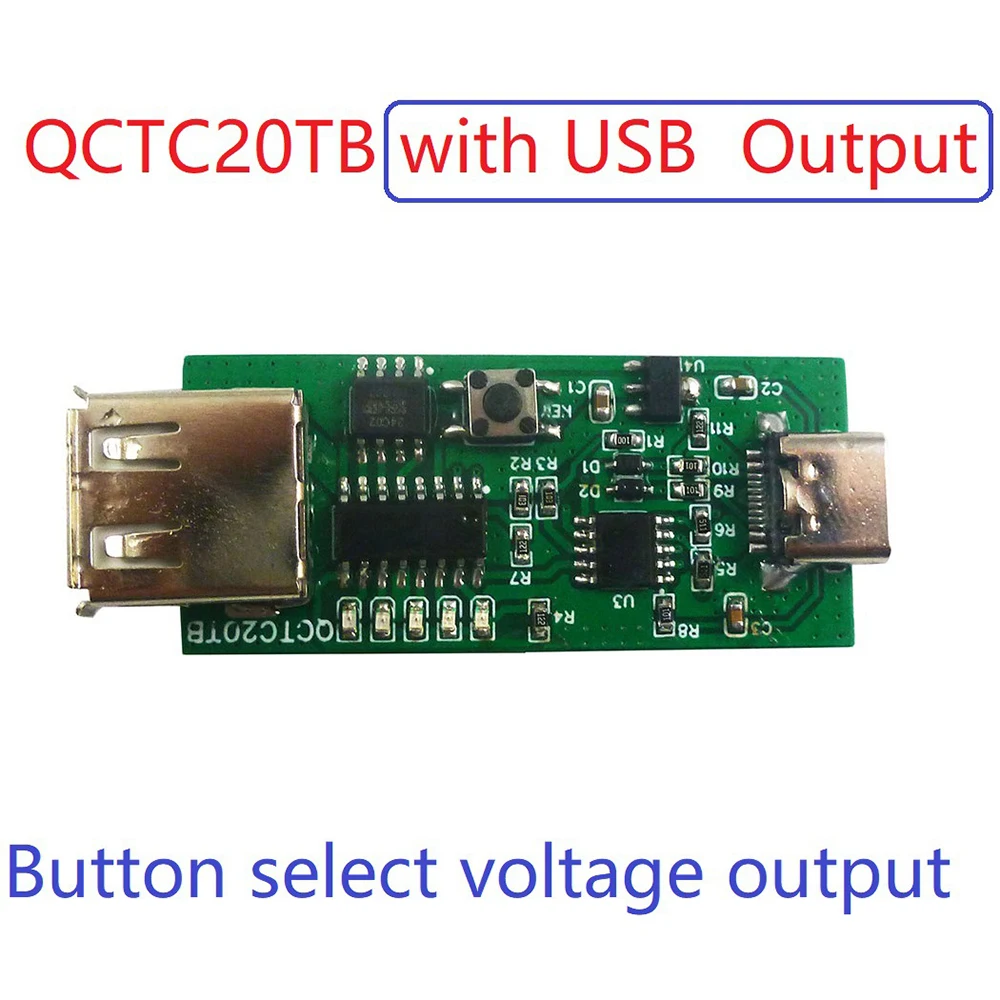

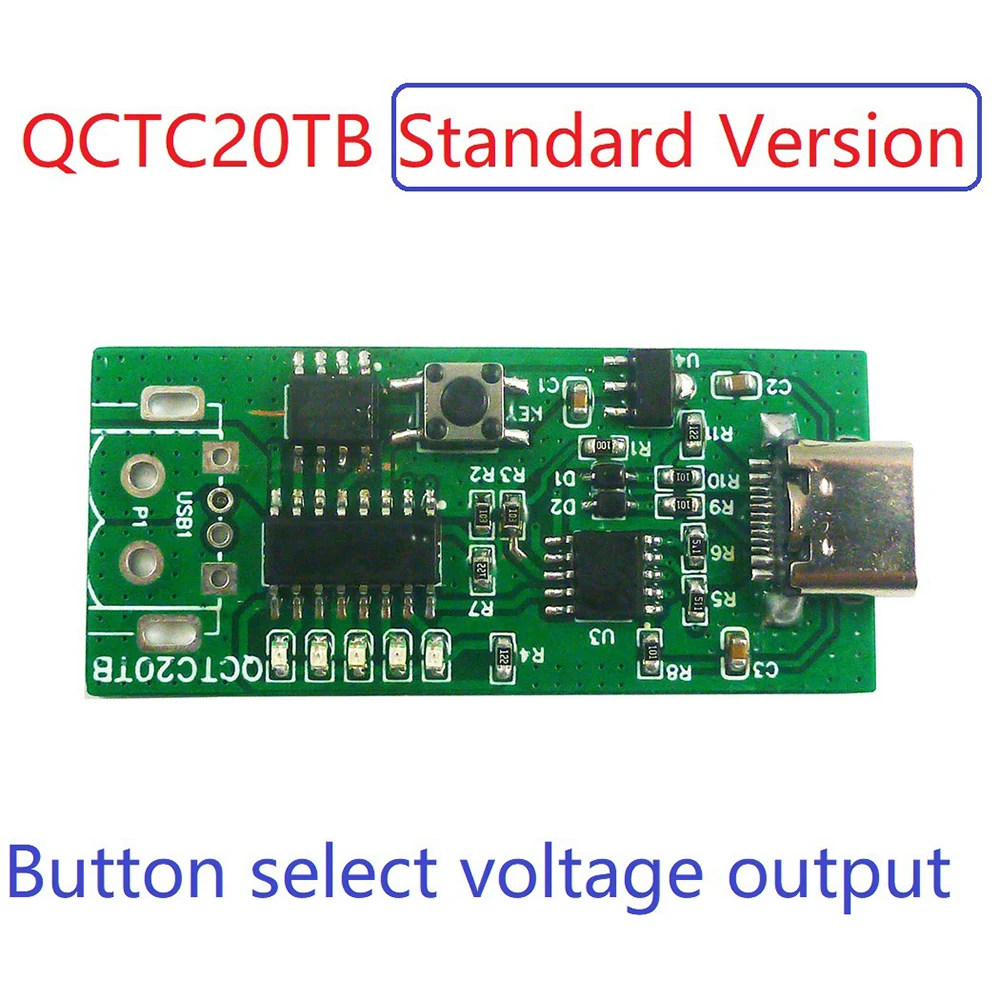

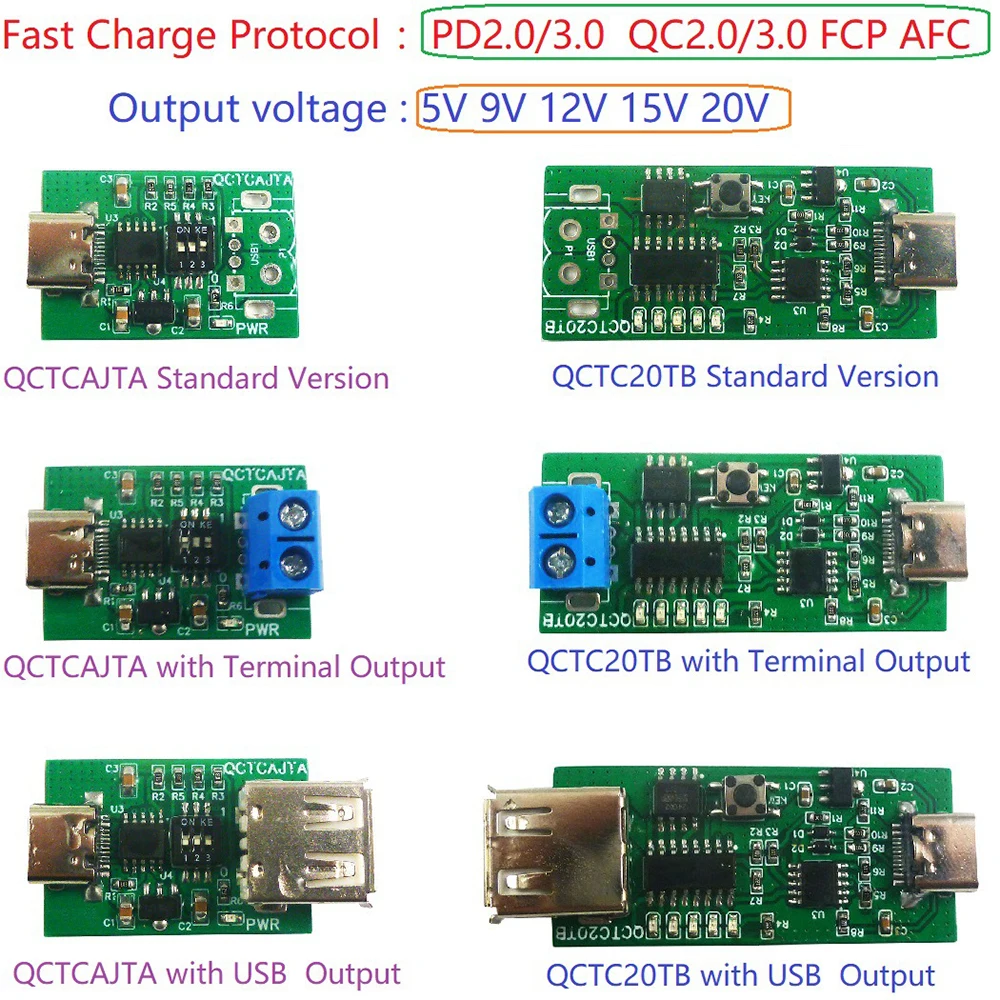

Voltage output selection button module (QCTC20TB):
Product introduction:
1. Fast charging support protocol: support PD3 0. PD2. 0. QC, FCP, AFC voltage bait output, mode free switching can also be set, only PD is supported.
2. Support 5V/9V/12V/15V/20V bait output (the specific range depends on your power supply).
3. It has key locking function to prevent misoperation (to avoid damaging load equipment by setting voltage incorrectly).
4.5V/9V/12V/15V/20V quick setting. LED indicates output.
5. The parameters are saved automatically, and the last spoofing setting is executed after power on.
6. Ultra low power consumption, high current, supporting 100W output.
7. Maximum 20V/2A output (actual value depends on your power supply).
8. Type-C is integrated and durable.
9. It is applicable to aging test, and the module withstand voltage is above 30V.
10. Each voltage can be quickly switched by external key
Parameters:
1. PD short circuit only: After short circuit, the module only supports PD protocol.
2. DM and DP short circuit contacts: DM and DP can be output from USB after short circuit. Short circuits are not recommended unless necessary.
3.5 Short contact of independent keys: five independent keys can be connected to quickly switch the voltage, which can be short circuit, short press, long press (the five short contacts on the module circuit are grounded together).
4. S1 short contact: this is the key locking function. After the short circuit, the switch voltage needs to be unlocked. The unlocking method is to press and hold the key to start the machine. To restart, you need to unlock again.
Matters needing attention:
1. The power supply must support PD or QC protocols.
2. Before use, please confirm whether the output voltage is consistent with the power consumption voltage of the electrical equipment used, so as to avoid burning the equipment by misoperation, or you will be responsible for the consequences.
3. Try to hold the edge of the board with your hands and do not touch the chip directly to avoid damage to the chip by human static electricity.
4. When the decoy output voltage setting is unknown, do not connect the load first, and then connect it after confirmation to avoid the voltage exceeding the withstand voltage of the load.
5. The reason for voltage jump (the indicator lamp flashes): If the no-load output of the decoy is normal, there is a load voltage jump (the voltage has just risen back to 5V or is simply disconnected). In this case, the load power exceeds the power that the power supply can provide. At this time, the power supply will be forced to perform voltage reduction or power failure protection. At this time, only a higher power supply can be replaced or the load power can be reduced.
Package Included:
1pcs x Fast Charge Decoy Trigger Module Type-C PD QC AFC Output Charge Board Module DC 5V 9V 12V 15V 20V For Charger WIFI Router Camera
